Fit illuminated door sill molding - AZ82.20-P-0001-01PC

Glue luminous foil (3) onto bottom of metal door sill molding (1).
Silver side of luminous foil does not illuminate
Position metal door sill molding (1) on standard door sill molding (2) and mark 20 mm dia. hole on cable outlet of luminous foil (2) (see direction arrow in magnified section) and cut out.
Degrease standard door sill molding (2) with cleaning rag.
Stick metal sill panel (1) onto standard sill panel (2).
Fasten connection cable for luminous foil at bottom of standard door sill molding (2) with adhesive strip.

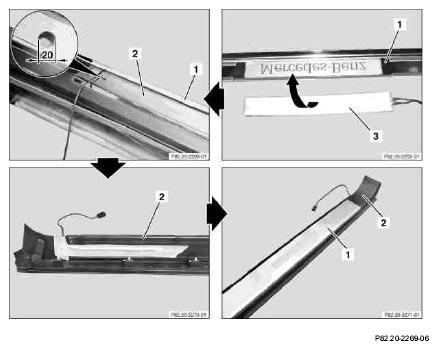

Fig 1: Fitting Illuminated Door Sill Molding
Drill 6 mm dia. hole at marked point (see arrow) through bead on frame floor system (FFS) and treat with corrosion protection agent.
Do not damage carpeting in vehicle.

Fig 2: Identifying Marked Point For Drilling Hole
Open connector housing (5) at connection lead and remove conductors.
Route connection lead for illuminated metal door sill molding (1) to passenger compartment through hole (see arrow) and insert into connector housing (5).
Use clamps as required.

Illustrated on model 215

Fig 3: Identifying Illuminated Metal Door Sill Molding And Connector Housing - Illustrated On Model 215
