Connecting headlamp range adjustment wiring harness - AN82.10-P-0002-04P

  1. Install connector (3) on left front headlamp unit (E1).

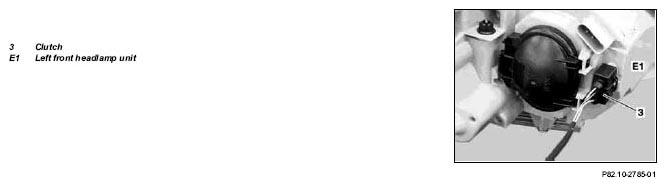

    Fig 1: Identifying Left Front Headlamp Unit And Clutch
    G04735934
  2. Connect connector (1, 2) to right front headlamp unit (E2).

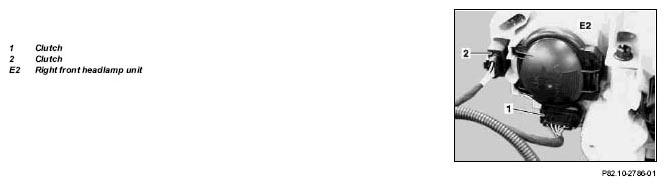

    Fig 2: Identifying Right Front Headlamp Unit And Clutch
    G04735935
