Connect wiring harness - AZ82.20-P-0001-02PC

Wiring harness connection schematic illuminated door sill molding

Fig 1: Wiring Harness Connection Schematic Diagram For Illuminated Door Sill Molding

1. Route illuminated door sill molding wiring harness (1) with tie-out to rear SAM control module (N10/2) and to rear central ground SAM (W55) along present leads and fasten (see bottom right figure).
2. Clip 1-pin connector into plug location 28 of rear SAM control module (N10/2).
3. Route ground lead to rear central ground SAM (W55) and connect.
4. Install rear SAM control module (N10/2).
5. Connect 5A fuse into plug location (N10/2f6) of rear SAM control module (N10/2).

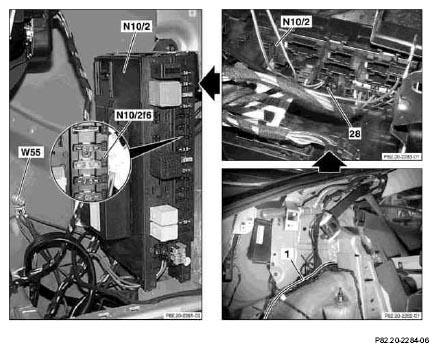

   Fig 2: Identifying Illuminated Door Sill Molding Wiring Harness And Rear SAM Control Module


6. Route illuminated door sill molding wiring harness (1) to rear seat along left wheelhouse and secure.
7. Route tie-out of brown/blue lead to right door contact switch below insulating mat and fasten with felt strip.
8. Guide the branch-off line with the brown/gray wire (br/gr) to the left door contact switch (S17/3).
   Fig 3: Identifying Illuminated Door Sill Molding Wiring Harness And Left Door Contact Switch


9. Expose brown/gray wire (br/gr) from left door contact switch (S17/3) 80 mm and disconnect in the center.
10. Solder brown/gray wire (br/gr) of illuminated door sill molding wiring harness (1) with the disconnected ends of the brown/gray wire (br/gr) of left door contact switch (S17/3) using a solder connector (see detail).
    Fig 4: Identifying Left Door Contact Switch


11. Connect supplied converter (7) with 3-pin connector (10) to illuminated door sill molding wiring harness (1).
12. Guide connection wire with 2-pin connector (11) along existing wires to the base of the B-pillar.
13. Connect converter (7) with excess length of illuminated door sill molding wiring harness (1) and secure with a felt strip on the body floor.

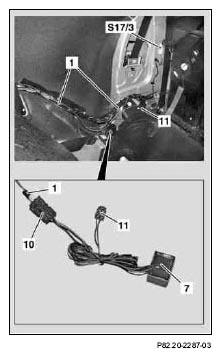

    Fig 5: Identifying Supplied Converter, 3-Pin Connector And Illuminated Door Sill Molding Wiring Harness


14. Connect 2-pin connector (11) to 2-pin counter-connector (5) of connection line for illuminated door sill molding and secure with felt at the base of the B-pillar.
15. Secure connection line for the illuminated door sill molding with felt strips (see arrows) at the rabbet of the FFS.
16. Secure brown/gray wire (br/gr) of illuminated door sill molding wiring harness (1) to existing wiring harness of left door contact switch (S17/3).
17. Repeat steps  9 -  15 for right door contact switch with branch-off line of brown/blue wire of illuminated door sill molding wiring harness (1).
    Fig 6: Identifying Left Door Contact Switch, 2-Pin Counter-Connector And 2-Pin Connector
