Antenna amplifier module, location - GF82.62-P-3105-01PS

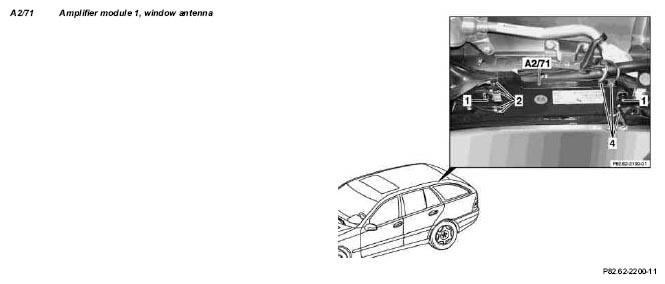

Fig 1: Identifying Amplifier Module 1 Window Antenna

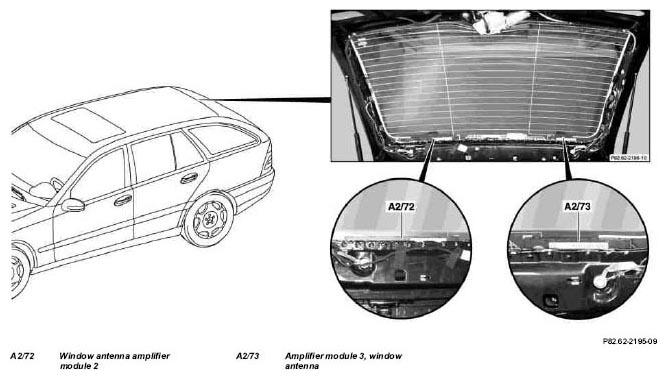

Fig 2: Identifying Amplifier Module 1 And 3 Window Antenna

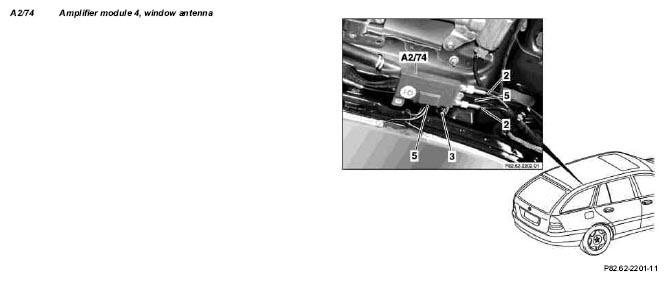

Fig 3: Identifying Amplifier Module 4 Window Antenna

Location

Window antenna amplifier module 2 (A2/72) and the window antenna amplifier module 3 (A2/73) are located on the rear window above the rear window defroster.

Window antenna amplifier module 1 (A2/71) is located above the left rear side window on the roof frame.

Window antenna amplifier module 4 (A2/74) is located above the right rear side window on the roof frame.
