E-Call backup antenna, location/task - GF82.95-P-4205Q
MODELS 209.3 /4 with CODE (349) E Call emergency call system with CODE (491) U.S. version with CODE (498) Japanese version

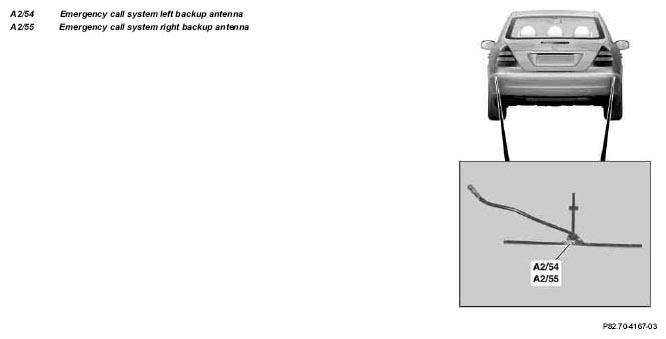

Location illustrated on model 211
| E-CALL substitute antenna, location | The emergency call system left backup antenna (A2/54) and emergency call system right backup antenna (A2/55) are located in the body's vents near the rear bumper. | ||
| E-Call backup antenna, purpose | Receiving and transmitting of E-call emergency call signals, when the telephone antenna (A2/22) performance is insufficient. |
