Sensor laminated contact, connector family - GF00.19-P-8101B

MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414, 461, 463 sensor laminated contact variant 2 connector family

Fig 1: Identifying 2-Pin SLK Plug

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying 2-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying 2-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying 6-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying 2-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying 2-Pin SLK Plug

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying 5-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying 2-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

Fig 9: Identifying 3-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

Fig 10: Identifying 4-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

Fig 11: Identifying 3-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

Fig 12: Identifying 2X3-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

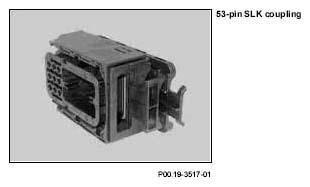

Fig 13: Identifying 53-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

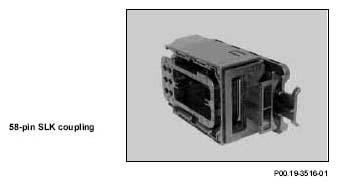

Fig 14: Identifying 58-Pin SLK Coupling

Courtesy of MERCEDES-BENZ USA

Notes on replacement of safety-relevant and special components	Model 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414, 461 as of 1.4.94, 463	AH00.19-P-1000-08A
Notes regarding plug connections		AH00.19-P-1000-06A
Remove contacts from sensor laminated contact plug	Spade-type sensor contact plug Variant 2	AR00.19-P-0120-01B
Remove contacts from sensor laminated contact coupling	Spade-type sensor contact coupling, variant 2	AR00.19-P-0120-02B
