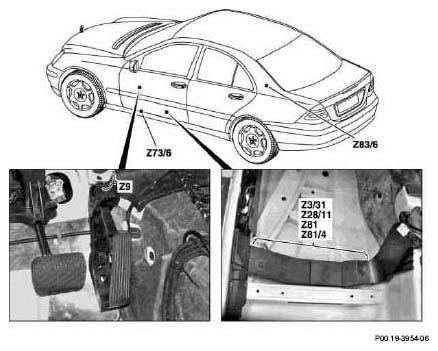

| Z3/31 |
Circuit 15R connector sleeve, (fused, sidebag) |
← N10/1 |
Front SAM control unit with fuse and relay module |
12.4 |
| |
|
→ N2/7 |
Restraint systems control unit |
29 |
| |
|
→ B48 |
Front passenger seat occupied and child seat recognition sensor |
1 |
| Z9 |
Connector sleeve 1 (solder joint in harness) |
← N3/9 |
CDI control unit |
2.7 |
| |
|
→ B37 |
Accelerator pedal sensor |
6 |
| Z28/11 |
Radio fade out unit/radio connector sleeve (- signal) |
← Z87/10 |
Cable end bared 5 mm, terminal of radio mute connector |
|
| |
|
→ Z87/34 |
Hands-free two-way radio connector sleeve (2m band) |
|
| |
|
→ Z87/35 |
Hands-free two-way radio connector sleeve (4m band) |
|
| Z73/6 |
Ground connector sleeve |
← W28/1 |
Ground (left inner door sill) |
|
| |
|
→ Z20/35 |
CAN bus screening end |
|
| Z81 |
Circuit 58d connector sleeve |
← N10/1 |
Front SAM control unit with fuse and relay module |
20.3 |
| |
|
→ A45 |
Fanfare horns and airbag clock spring contact |
4 |
| |
|
→ E9/7 |
Front ashtray illumination |
2 |
| |
|
→ E10/1 |
Center air outlet illumination |
1 |
| |
|
→ E10/2 |
Left air outlet illumination |
1 |
| |
|
→ E10/3 |
Right air outlet illumination |
1 |
| |
|
→ R3 |
Front cigar lighter (with illumination) |
2 |
| |
|
→ S1 |
Light switch module |
1 |
| Z81/4 |
FFS [RBA] circuit 58d connector sleeve |
← N10/1 |
Front SAM control unit with fuse and relay module |
25.1 |
| |
|
→ X18/37 |
Emergency Call button connector |
4 |
| |
|
→ X39/5 |
Portable CTEL preinstallation connector |
S2.4 |
| Z83/6 |
Shielding connector sleeve |
← W8/1 |
Ground (left rear-end door) |
2 |
| |
|
→ A2/71 |
Amplifier module 1, window antenna |
|
| |
|
→ A2/72 |
Window antenna amplifier module 2 |
|
