E 95 connector family - GF00.19-P-8104A

MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414, 461, 463

Fig 1: Identifying 29-Pin E95 Coupling

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying 27-Pin E95 Coupling

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying 9-Pin E95, JPT Coupling

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying 4-Pin E95 Coupling

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying 6-Pin E95 Coupling

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying 61-Pin E95, JPT Coupling

Courtesy of MERCEDES-BENZ USA

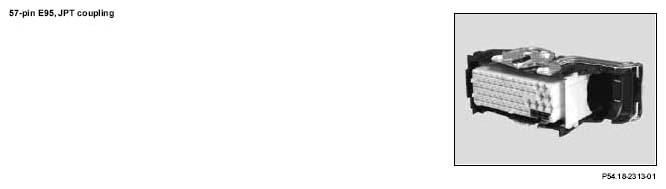

Fig 7: Identifying 57-Pin E95, JPT Coupling

Courtesy of MERCEDES-BENZ USA

	Notes on replacement of safety-relevant and special components	Model 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414, 461 as of 1.4.94, 463	AH00.19-P-1000-08A
	Notes regarding plug connections		AH00.19-P-1000-06A
	Remove contacts from E95 coupling		AR00.19-P-0120-05A
	Remove contacts from Junior Power Timer coupling		AR00.19-P-0120-07A
