Removing and installing taillamp - AR82.10-P-4905PB

MODEL 203.7

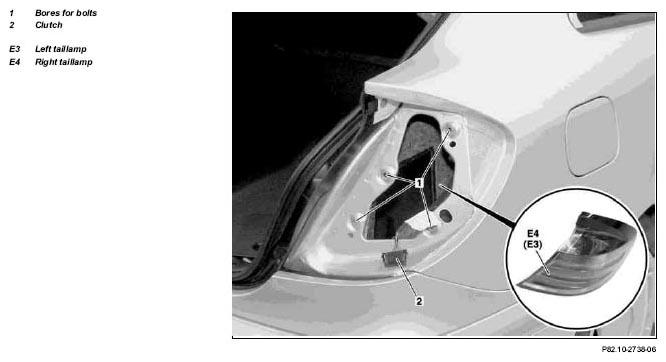

Fig 1: Identifying Taillamp Remove/Install Components - Model 203.7

	Remove/install
1	Fold up side paneling in area of left taillamp (E3), right taillamp (E4)
2.1	Remove first aid kit	For left taillamp (E3) only
3	Detach connector (2) at taillamp	Left taillamp (E3), right taillamp (E4)
4	Remove nuts
5	Remove left taillamp (E3), right taillamp (E4)	Installation:  Ensure that gasket is in good condition and is properly seated.
6	Install in the reverse order
