Rear-end door washer pump location/task - GF82.35-P-4109PP

MODELS 203.2

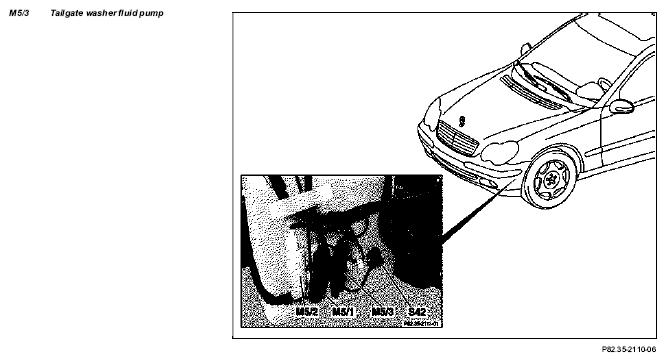

Fig 1: Identifying Rear-End Door Washer Pump Location
G04735559
  Rear window washer pump, location The rear-end door washer fluid pump (M5/3) is at the washer fluid reservoir, which is accommodated in the wheelhouse of the front left fender.
  Rear window washer pump, purpose The purpose of the rear-end door washer fluid pump (M5/3) is to pump washer fluid for the rear window wiper washer.
