Start up Auto-Pilot-System - AN82.61-P-1002-07PA

System description

The start-up step 5.1 applies only for units which have already been installed in a vehicle and obtained initial calibration.

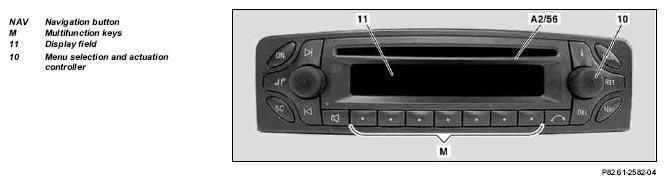

Fig 1: Identifying Menu Selection And Actuation Connector

	Start-up step	Control on keyboard (M)	Feedback in display field (11)
1		Switch on Audio 30 APS navigation system
2.1	Insert up-date CD	Only on new units delivered with an up-date CD. Follow menu guidance
3	Insert navigation CD	Loading time can take several minutes.
4	Navigation menu	Call navigation menu by pressing NAV button	LANGU POS CLOCK WHEEL
5.1	Erase initial calibration	Applies only when initial calibration has been performed on unit  Select menu "ENTER ADDRESS" on right rotary knob (10) and confirm by pressing rotary knob (10).  Press multifunction keys 2 and 7 in sequence and release simultaneously. Press KAL multifunction key.	KAL
		Select menu "ERASE CALIBRATION" by turning right rotary knob (10) and confirm by pressing rotary knob (10).	After a short time the navigation basic menu appears
6	Commissioning	Park vehicle outdoors with Audio 30 APS switched on (minimum reception time for GPS satellite signals approx. 30 min.) Call navigation menu by pressing NAV button	LANGU POS CLOCK WHEEL
7	Select language	By pressing the multifunction key "LANGU" select desired language.
8	Enter vehicle type	Select specified entry, e.g. MB passenger car.	MB passenger car
9	Enter tire size	By pressing the multifunction key "WHEEL" enter tire size and confirm by pressing right rotary knob (10).	Wheel
10	Take over parameter	Select entry "Take over values". The vehicle is now calibrated and is ready for use with a GPS reception from "Fix 2D". Calibration drive is no longer required.	System restart
11	Carry out road test	Call navigation menu by pressing NAV multifunction button Enter destination (see operating instructions) and drive to destination.
