Front door central locking (CL) does not lock - AF72.10-P-6006A

MODEL WDB203.0## #A as of 321510 up to 390374, WDB203.2## #F as of 254091 up to 292777, WDB203.7## #A as of 321510 up to 390374

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	023736	Repair central locking of front door	010 WU /0.8 h	-	-

Damage code	Cause	Remedy
72 B11 H2 left door lock	The door lining presses on the linkage (2) of the locking pin.	1 Remove door lining at the front door concerned.	AR72.10-P-1000P
72 P11 H2 right door lock	The central locking on the front door does not lock or front door locking pin moves up and down.	2 Carefully separate sound deadening mat in the door lock area.
		3 Draw upwards the boot (1) flipped downwards on linkage (2) by means of needle nose pliers.
		4 Glue on sound deadening mat.
		5 Install door liner on front door.	AR72.10-P-1000P
		6 Carry out operational check.

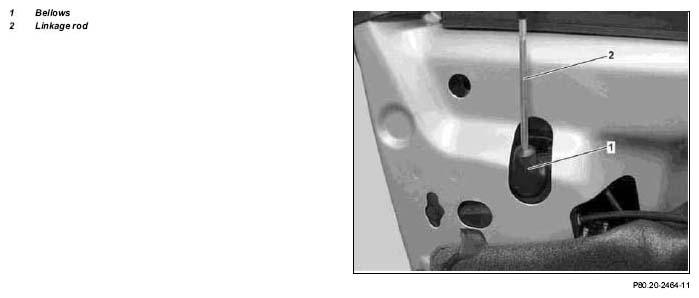

Fig 1: Identifying Bellows & Linkage Rod
