Removing and installing tailgate lock - AR72.20-P-2550PB

MODEL 203.7

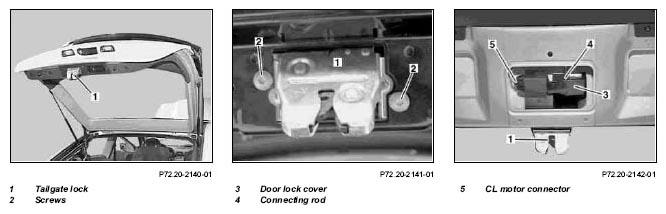

Fig 1: Identifying Tailgate Lock Remove/Install Components

	Removing, installing
1	Remove paneling from bottom tailgate		AR68.30-P-1060PB
2	Unscrew screws (2)		*BA72.20-P-1003-02A
3	Remove lock cover (3)
4	Unhook connecting rod (4)
5	Disconnect CL motor connector (5)	Tilt tailgate lock toward rear.
6	Remove tailgate lock (1) out of opening
7	Install in the reverse order

TAILGATE

Number	Designation		Model 203.0/2/7
BA72.20-P-1003-02A	Screws at tailgate lock	Nm	9
