Removing and installing power window motor in rear door - AR72.29-P-1880P

MODEL 203.0 /2

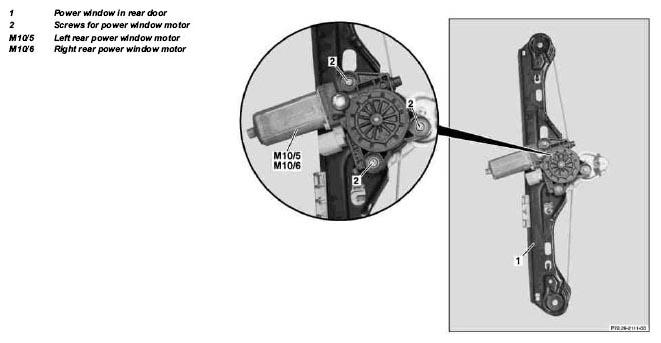

Fig 1: Identifying Power Window Motor In Rear Door Remove/Install Components

	Removing, installing
1	Remove power window (1) in rear door		AR72.12-P-1810P
2	Unscrew screws for power window motor (2)
			*BA72.29-P-1002-01A
3	Unscrew coupling from power window motor	Left rear power window motor (M10/5), right rear power window motor (M10/6).
4	Install in the reverse order
5	Carry out operational check
6	Normalize power window	Refer to: ↓
		Basic programming	GF72.29-P-4003PP

ELECTRIC SYSTEM - SIDE DOORS

Number	Designation		Model 203
BA72.29-P-1002-01A	Bolt of motor of electric window lifter of rear door	Nm	4,5
