Removing and installing front power window switches - AR72.29-P-0100P

MODEL 203

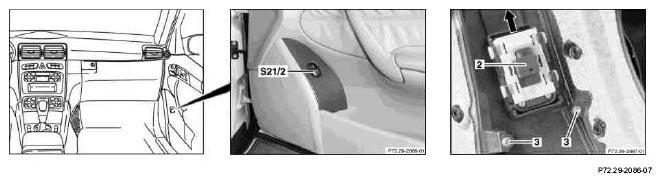

Fig 1: Identifying Front Power Window Switches
G04737911
REMOVINGINSTALLING Removing, installing
1 Remove door liner from front door   AR72.10-P-1000P
2 Unscrew screws (3)
3 Disconnect connector
4 Unclip front passenger-side power window switch (S21/2), remove
5 Install in the reverse order
