Removing and installing front door power window switch group - AR72.29-P-0110P

MODEL 203

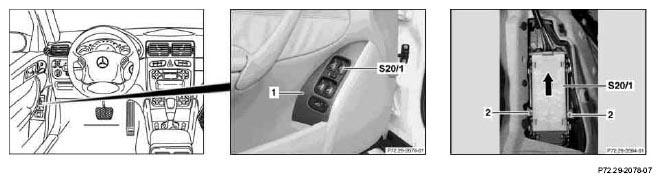

Fig 1: Identifying Front Door Power Window Switch Group
G04737912
REMOVINGINSTALLING Removing, installing
1 Remove door liner from front door   AR72.10-P-1000P
2 Unscrew screws (2)
3 Unclip left front power window switch group (S20/1) out of trim panel (1) (arrow) and remove
4 Install in the reverse order
