Removing and installing front door control module - AR72.29-P-1000P

MODEL 203

Illustrated on model 203.0

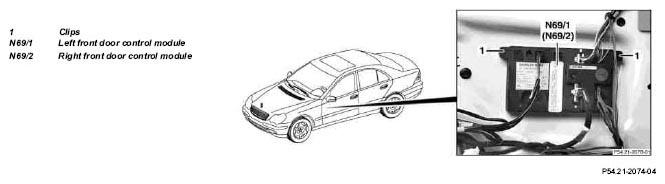

Fig 1: Identifying Front Door Control Module

	Removing, installing
1	Remove door liner from front door		AR72.10-P-1000P
2	Pull off door foil in assembly area
3	Disconnect door control module connectors	On left front door control module (N69/1), right front door control module (N69/2).
4	Press together clips (1) and take out door control module	Installation:  Observe retaining lug on left front door control module (N69/1) and right front door control module (N69/2).
5	Install in the reverse order
