Remove/install sealing strip on door bottom edge - AR72.12-P-1019PA

MODEL 203.### (except 203.7) #A as of 480000 up to 745749, 203.### (except 203.7) #F as of 380000 up to 648300, 203.### (except 203.7) #R as of 091200 up to 173714, 209.### #F as of 040000 up to 147224, 209.### #T as of 000430 up to 004944, 220.### #A as of 334894 up to 374525

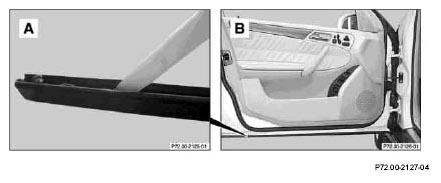

Fig 1: Identifying Sealing Strip On Door Bottom Edge

	Remove
	Risk of injury  caused by fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Remove sealing strip from doors
2	Thoroughly clean sealing strip and doors with silicone remover and blow dry with compressed air	To ensure proper adhesion, there must be no wax or cleaning agent residues remaining.	*BR00.45-Z-1052-04A
	Install
3	Fill sealing strip with sealant	Insert nozzle of sealant cartridge as far into the sealing strip as possible (figure A).	*BR00.45-Z-1068-01A
		The sealing strip is sufficiently filled if the material is clearly visible.
4	Install sealing strip to door	Remove excess material using a plastic wedge.
		Mounting wedge	Figure
5	Clean door and sealing strip after assembly	Remove excess material with rag and silicon remover	*BR00.45-Z-1052-04A

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
