Remove/install sealing strip on door bottom edge - AR72.12-P-1019P

MODEL 203.### (except 203.7) #A up to 480000, 203.### (except 203.7) #F up to 380000, 203.### (except 203.7) #R up to 091200, 209.### #F up to 040000, 209.### #T up to 000430, 220.### #A up to 334894, 203.### (except 203.7) #A as of 745749, 203.### (except 203.7) #F as of 648300, 203.### (except 203.7) #R as of 173714, 209.### #F as of 147224, 209.### #T as of 004944, 220.### #A as of 374525

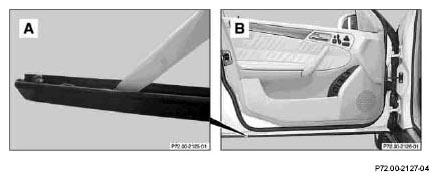

Fig 1: Identifying Sealing Strip On Door Bottom Edge

	Remove
	Risk of injury  caused by fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Remove sealing strip from doors	Sealing strip must be replaced When performing service measure also replace sealing strip
		Long wedge	Figure
2	Thoroughly clean door with silicon remover and dry with compressed air	To ensure proper adhesion, there must be no cleaning agent residues remaining.	*BR00.45-Z-1052-04A
	Install
3	Fill new sealing strip with sealant	Insert nozzle of sealant cartridge as far into the sealing strip as possible (figure A).	*BR00.45-Z-1068-01A
		The sealing strip is sufficiently filled if the material is clearly visible.
4	Install sealing strip to door	Remove excess material using a plastic wedge.
		Mounting wedge	Figure
5	Clean door and sealing strip after assembly	Remove excess material with rag and silicon remover	*BR00.45-Z-1052-04A

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)
