Remove/install outer rear door handle - AR72.12-P-2410P

MODEL 203.0 /2

Shown on model 203.0

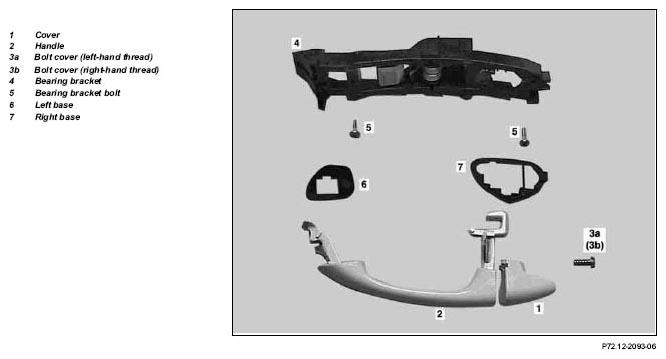

Fig 1: Identifying Outer Rear Door Handle Remove/Install Components (1 Of 3)

Shown on model 203.0

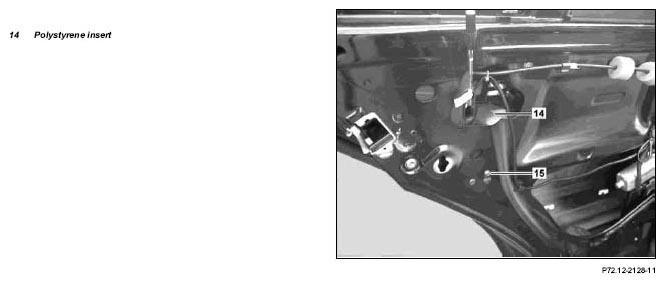

Fig 2: Identifying Outer Rear Door Handle Remove/Install Components (2 Of 3)

Shown on model 203.0

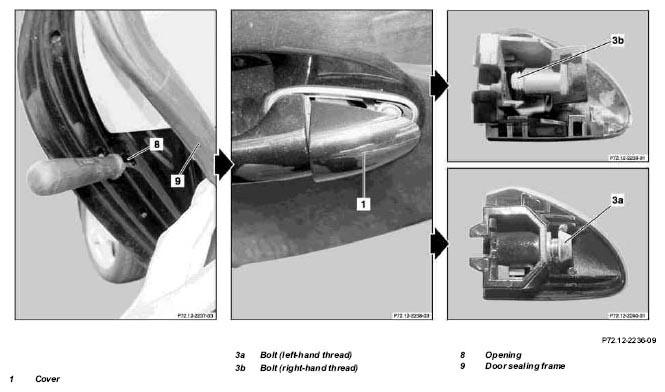

Fig 3: Identifying Outer Rear Door Handle Remove/Install Components (3 Of 3)

	Remove/Install
1	Remove door lining from rear door		AR72.12-P-1010P
2.1	Remove rear door sidebag unit	With sidebag in rear, left and right, code 293	AR91.60-P-0692P
3	Pull foil off of inner door panel
4	Remove styrofoam insert (14)	Installed as two-piece element
5	Unclip door sealing frame (9)	In area of door lock.
6.1	Loosen bolt (left-hand thread) (3a) in opening (8) and pull out cover (1)	Left-hand thread on Classic and Avantgarde equipment version
		Turn to left (counterclockwise) (3a) to loosen bolt
		Left-hand thread: Bolt (left-hand thread) (3a) is turned against a stop. Do not tighten bolt too tightly!
	Notes on bolts with right and left-hand threads on rear door handle	Model 203	AH72.12-P-1002-01P
		Bolt, waf 3 mm rear door handle	*BA72.12-P-1004-01A
6.2	Loosen bolt (right-hand thread) (3b) in opening (8) and pull out cover (1)	Right-hand thread on Elegance equipment version
	Notes on bolts with right and left-hand threads on rear door handle	Model 203	AH72.12-P-1002-01P
		Bolt, waf 3 mm rear door handle	*BA72.12-P-1004-01A
7	Take out cover (1)
8	Pull handle (2) to the rear out of bearing bracket (4) and take off
9	Remove left subsurface (6) and right subsurface (7)
10	Unscrew bolts from bearing bracket (5)
11	Take out bearing bracket (4) through assembly opening of door
12	Install in the reverse order
13	Perform function check
