Remove/install front door power window motor - AR72.29-P-1860PC

MODEL 203.7

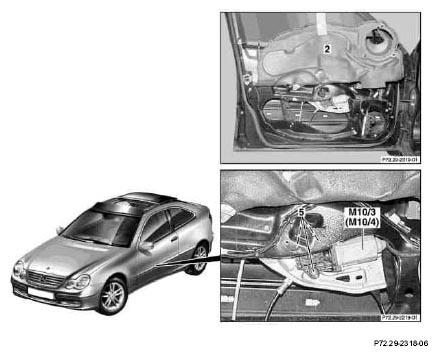

Fig 1: Identifying Front Door Power Window Motor

	Remove/Install
1	Remove front door liner		AR72.10-P-1000P
2	Loosen bottom door foil (2), fold upward and fasten	Carefully remove door foil (2) and check carefully for damage, replace if necessary Installation:  Check butyl cord on inner door panel, install new butyl cord if necessary.
		Roller	Figure
		Sealing cord	*BR00.45-Z-1021-01A
3	Unscrew bolts (5).	Bolt front door power window motor	*BA72.29-P-1001-01A
4	Remove left front power window motor (M10/3), right front power window motor (M10/4) from power window
5	Install in the reverse order
6	Read out fault memory
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		Diagnosis system STAR DIAGNOSIS	*WH58.30-Z-1048-13A
7	Synchronize left front power window motor (M10/3), right front power window motor (M10/4)	To synchronize left front power window motor (M10/3), right front power window motor (M10/4): ↓
		Perform basic programming	AR00.19-P-0200P
8	Perform a function test

ELECTRIC SYSTEM - SIDE DOORS

Number	Designation		Model 203
BA72.29-P-1001-01A	Bolt, front door power window motor	Nm	4.8

Fig 2: Identifying Roller (168 589 05 63 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1021-01A	Sealing cord	A 001 987 73 46
