Assembling and disassembling door liner in rear door - AR72.12-P-1040P

MODELS 203.0 /2

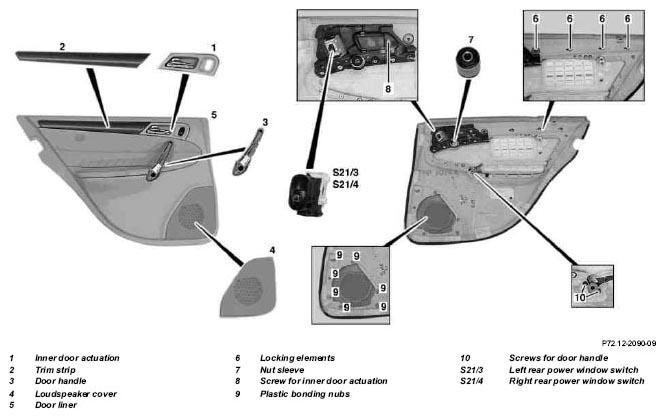

Fig 1: Identifying Door Liner In Rear Door Assembling And Disassembling Components

	Disassembling
1	Remove door liner from rear door		AR72.12-P-1010P
2	Unclip power window switch, remove	Left rear power window switch (S21/3), right rear power window switch (S21/4).
3	Remove locking elements (6) and trim strip (2)
4	Unscrew screw (8) and remove inner door actuation (1)	Torx bit set	Figure
5	Unscrew nut sleeve (7)
6	Remove screws (10) and take off door handle (3)	Torx bit set	Figure
7	Remove plastic bonding nubs (9) and remove loudspeaker cover (4)
	Assembling
8	Install loudspeaker cover (4)
9	Install door handle (3)	Torx bit set	Figure
10	Tighten nut sleeve (7)
11	Install inner door actuation (1)	Torx bit set	Figure
12	Install trim strip (2)
13	Install power window switch	Left rear power window switch (S21/3), right rear power window switch (S21/4).
14	Install door liner in rear door		AR72.12-P-1010P

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
