Removing and installing inclination sensor (anti-towing sensor) - AR80.50-P-0001P

MODEL 203 with CODE (551a) Anti-theft alarm system (ATA)

Shown on Model 203.0

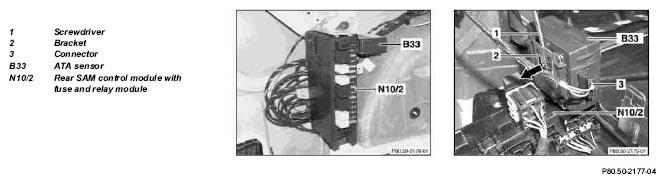

Fig 1: Identifying Inclination Sensor (Anti-Towing Sensor) Remove/Install Components

	Removing, installing
1.1	Remove paneling in trunk	Remove left side wall paneling in trunk.
		Model 203.0	AR68.30-P-4600P
		Model 203.7	AR68.30-P-4600PB
1.2	Remove and install paneling in rear	Remove left side paneling.
		Model 203.2	AR68.30-P-4780PA
2	Remove rear SAM control module with fuse and relay module (N10/2)
3	Disconnect connector (3) from ATA inclination sensor (B33)
4	Remove ATA inclination sensor (B33) from bracket (2)	Press lug (2) in direction of arrow with screwdriver (1).
5	Install in the reverse order
