Retrofit wiring harness - AN80.50-P-0001-01P

Fig 1: Identifying Wiring Harness Repair Kit (220 589 01 99 00)
G04735432

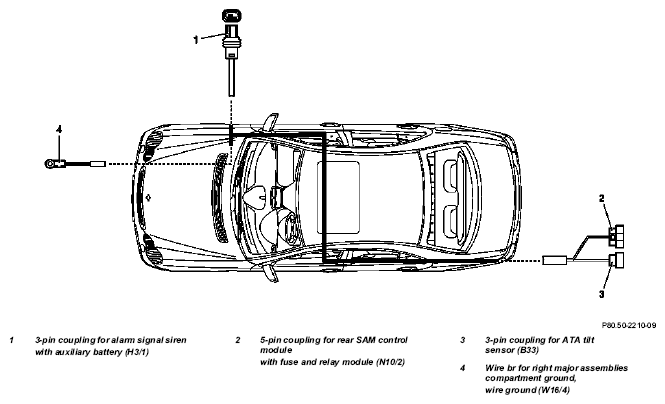

Fig 2: Identifying Wiring Harness & Couplings
G04735433
  1. Contact 3-pin coupling for ATA tilt sensor (B33).
  2. Contact 5-pin coupling for rear SAM control module with fuse and relay module (N10/2).
  3. Remove plug (7) via left rear wheel well.
  4. Attach wiring harness with tie straps to existing wiring harness (arrow) and guide via left rear wheel well to the vehicle passenger compartment.
  5. Route wiring harness in left sill cable duct as far as the driver's seat.
    Fig 3: Identifying ATA Tilt Sensor, Relay Module, Wiring Harness And Plug
    G04735434
  6. Route wiring harness in cable duct via tunnel to the right sill.
  7. Route wiring harness in right sill cable duct.
  8. Route wiring harness in passenger side footwell to cable duct (12) in engine compartment (arrows).

    IMPORTANT Secure to existing wiring harness with tie straps.

    Fig 4: Identifying Wiring Harness In Engine Compartment
    G04735435
  9. Press out locking pin (arrow) from cable duct (12) with screwdriver.
  10. Unplug wires from 3-pin coupling (1) for alarm signal siren with auxiliary battery (H3/1).

    NOTES Observe installation position of wires!

  11. Detach grommet carefully from wiring harness.

    IMPORTANT Observe installation position.

    Fig 5: Identifying Locking Pin & Cable Duct
    G04735436
  12. Route wiring harness through exposed duct (arrow) of cable duct (12) to the engine compartment.

    IMPORTANT Secure to existing wiring harness with tie straps.

    Fig 6: Locating Wiring Harness Through Exposed Duct Of Cable Duct
    G04735437
  13. Slide grommet onto wiring harness and position.
  14. Guide wiring harness through bore (arrow) in upper right inner longitudinal member (13).
  15. Position grommet in the bore (arrow).

    IMPORTANT Ensure correct seating of grommet.

    Fig 7: Locating Wiring Harness Through Bore In Upper Right Inner Longitudinal Member
    G04735438
  16. Assemble 3-pin coupling (1) for alarm signal siren with auxiliary battery (H3/1).

    NOTES Check correct latching of the female contacts in the connector housing by carefully pulling on the appropriate wire.

    IMPORTANT Ensure correct seating of rubber gasket.

  17. Route wiring harness to the alarm signal siren with auxiliary battery (H3/1) and secure with adhesive felt (arrows) to lower right firewall (14).
  18. Contact 3-pin coupling (1) for alarm signal siren with auxiliary battery (H3/1).
  19. Connect wire br (4) for right major assemblies compartment ground, wire ground (W16/4).
    Fig 8: Locating Wiring Harness To Alarm Signal Siren With Auxiliary Battery In Lower Right Firewall
    G04735439
