Parktronic system (PTS), location of components - GF54.65-P-0001-02H

Shown on model 203.0 as of 24.4.04

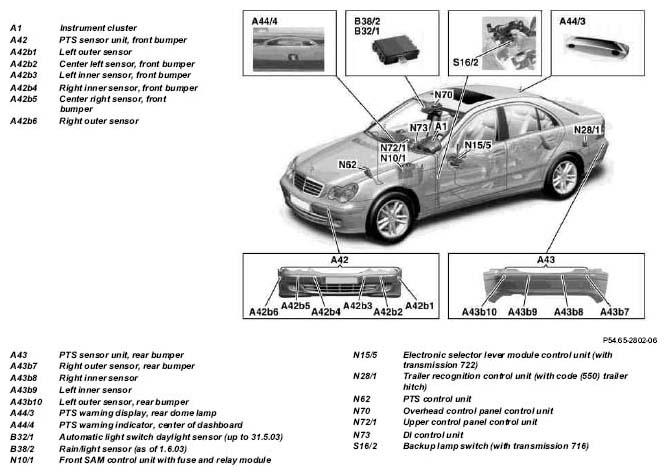

Fig 1: Identifying Parktronic System (PTS) Components Location - Shown On Model 203.0 As Of 24.4.04
G04733758
