"CHECK ENGINE" MIL component description - GF54.30-P-5011SM

MODEL 171 with ENGINE 113.989 with CODE (494) USA version

MODEL 203 with ENGINE 113.988 with CODE (494) USA version

MODEL 209 with ENGINE 113.987 with CODE (494) USA version

MODEL 215 with ENGINE 113.986 with CODE (494) USA version

MODEL 220 with ENGINE 113.986 with CODE (494) USA version

Type 171

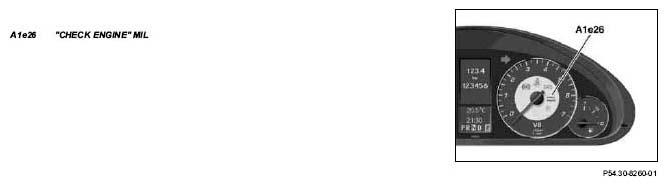

Fig 1: Identifying Check Engine MIL - Type 171

Model 203

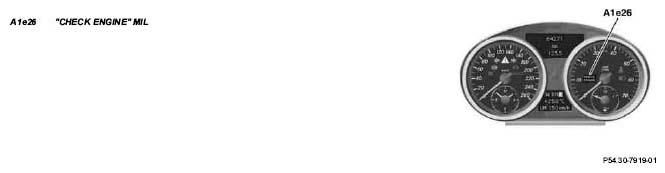

Fig 2: Identifying Check Engine MIL - Model 203

Model 209

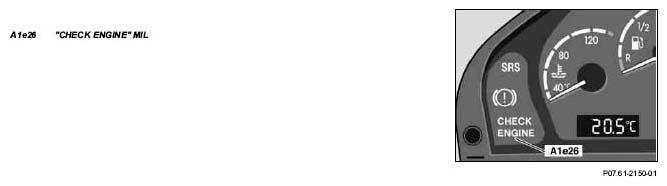

Fig 3: Identifying Check Engine MIL - Model 209

Model 215, 220

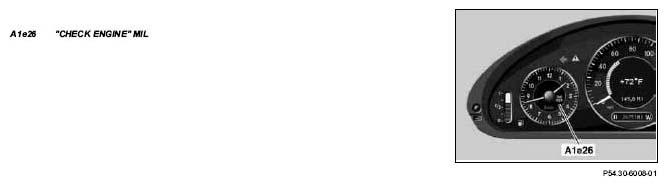

Fig 4: Identifying Check Engine MIL - Model 215, 220

Task

The "CHECK ENGINE" MIL notifies the driver of any exhaust-gas relevant faults.

Function

The "CHECK ENGINE" MIL is actuated at the ground end by the MESFI [ME] control unit (N3/10).

To check the bulb function it lights up for approx. 1 second when the ignition is switched "ON".

If there is no fault, the motor electronics control unit interrupts the actuation and the indicator lamp goes out.
