Removing and installing rear axle headlamp range adjustment sensor wiring harness - AR54.18-P-0040P

MODEL 203 with CODE (612b) Xenon headlamp unit

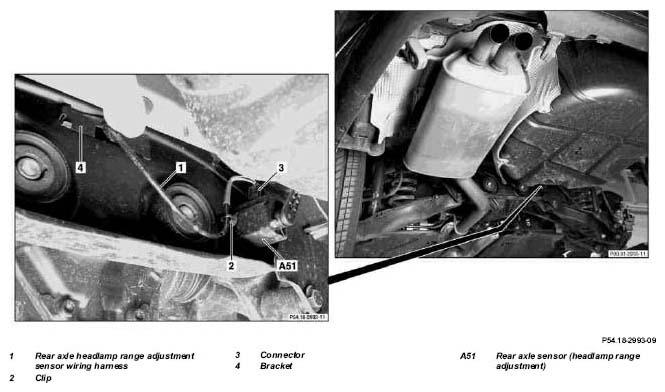

Fig 1: Identifying Rear Axle Headlamp Range Adjustment Sensor Wiring Harness Remove/Install Components - Model 203 With Code (612B) (1 Of 2)

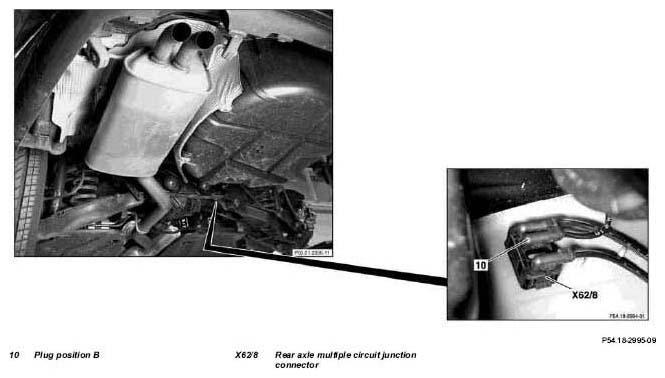

Fig 2: Identifying Rear Axle Headlamp Range Adjustment Sensor Wiring Harness Remove/Install Components - Model 203 With Code (612B) (2 Of 2)

	Removing, installing
1	Press out clip (2)	Press clip (2) out of rear axle headlamp range adjustment sensor (A51).
2	Unplug connector (3)
3	Unclip bracket (4)
4	Unplug connector from plug position B (10)	In the housing of the rear axle multiple circuit junction connector (X62/8).
5	Expose and remove rear axle headlamp range adjustment sensor wiring harness (1)
6	Install in the reverse order
