Removing and installing instrument cluster housing - AR54.30-P-6031P

MODEL 203, 209

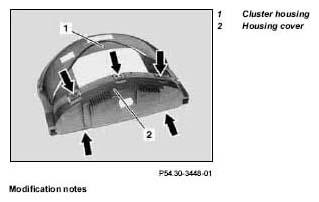

Fig 1: Identifying Cluster Housing And Housing Cover

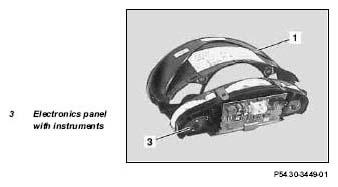

Fig 2: Identifying Electronics Panel With Instruments

MODIFICATION NOTES

20.1.04

Disconnect/connect/remove ground lead from battery

	Removal/installation
1	Remove instrument cluster Remove/install instrument cluster - AR54.30-P-6015P		AR54.30-P-6015P
2	Unclip retaining tabs (arrows) and remove housing cover (2) from cluster housing (1).	Installation:  Retainer tabs (arrows) must latch securely in place.
3	Remove the PCB with its instruments (3) from the cluster housing (1)	Installation:  Ensure that the reset button for the trip counter is properly seated.
4	Install in the reverse order
