Remove/install Parktronic system (PTS) switch - AR54.65-P-0005P

MODEL 203 with CODE (220) Parktronic system (PTS)

Illustrated on Model 203.0

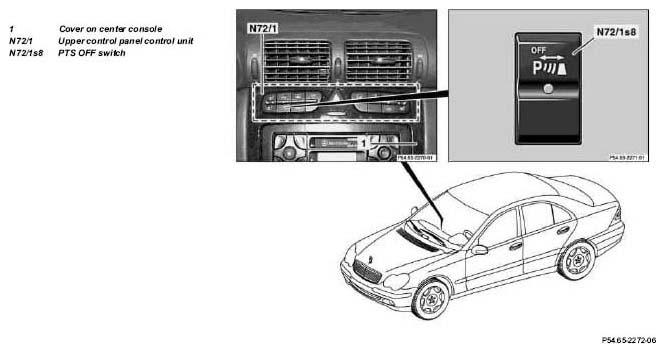

Fig 1: Identifying Parktronic System Switch Remove/Install Components - Illustrated On Model 203.0

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
1	Remove cover at center console (1)		AR68.20-P-2350P
2	Remove upper control panel control unit (N72/1)	PTS OFF switch (N72/1s8) is integrated into the upper control panel control unit.
		up to 23.04.04	AR54.21-P-1262P
		as of 24.04.04	AR54.21-P-1262PA
3	Install in the reverse order
