Remove/install Parktronic system (PTS) control unit - AR54.65-P-0006P
MODEL 203 with CODE (220) Parktronic system (PTS)

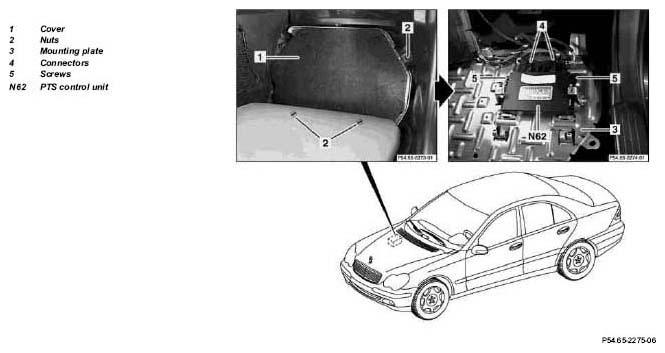

Shown on model 203.0
MODIFICATION NOTES
| 24.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | |||
| 1 | Fold back floor covering in front passenger footwell | ||
| 2 | Remove cover (1) | ||
| 3 | Unscrew nuts (2) | ||
| 4 | Remove mounting plate (3) from vehicle floor | ||
| 5 | Disconnect connectors (4) | ||
| 6 | Remove bolts (5) | ||
| 7 | Remove PTS control unit (N62) from guides | ||
| 8 | Install in the reverse order |
