Remove, install warning display in instrument panel for Parktronic system (PTS) - AR54.65-P-0003P

MODEL 203 with CODE (220a) Parktronic System (PTS)

Shown on model 203.0

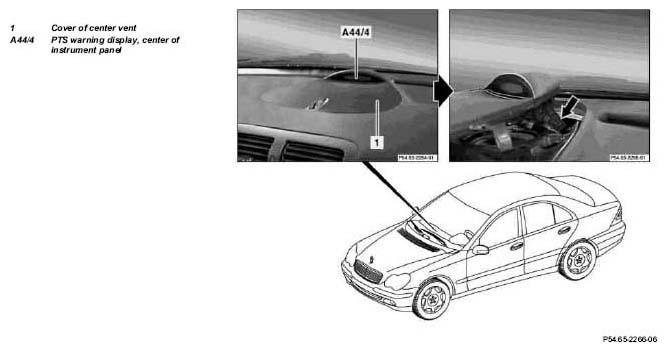

Fig 1: Identifying Cover Of Center Venta And PTS Warning Display, Center Of Instrument Panel - Shown On Model 203.0
G04733884
REMOVINGINSTALLING Removal, installation
1 Unclip and remove center nozzle cover (1) IMPORTANT PTS warning display, center of instrument panel (A44/4) is integrated in the cover of the center vent.
    SPECIAL TOOL Fig 2
2 Unplug connector (arrow)
3 Install in the reverse order
Fig 2: Identifying Long Wedge (115 589 03 59 00)
G04733885
