Remove, install fanfare horns - AR54.35-P-1555P

MODEL 203

Shown on model 203.0

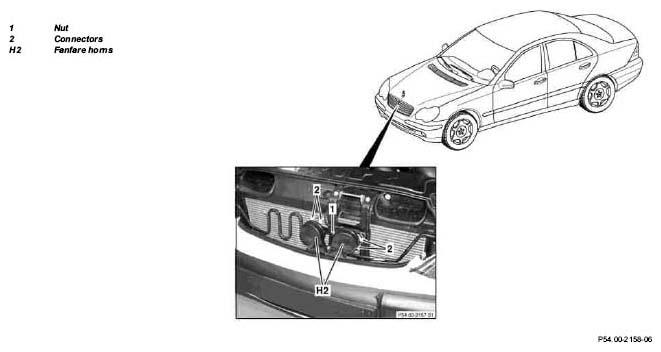

Fig 1: Identifying Fanfare Horns Remove/Install Components - Shown On Model 203.0
G04733879
REMOVINGINSTALLING Removal, installation
1 Disconnect connectors (2)
2 Unscrew nut (1)
3 Take off fanfare horns (H2)
4 Install in the reverse order
