Install wiring harness - AR54.18-P-0056P

MODEL 203.0 /2 /7, 209.3 with CODE (494) USA version

Fig 1: Identifying Wiring Harness Components - Shown On Model 203.0
G04733803

Shown on model 203.0

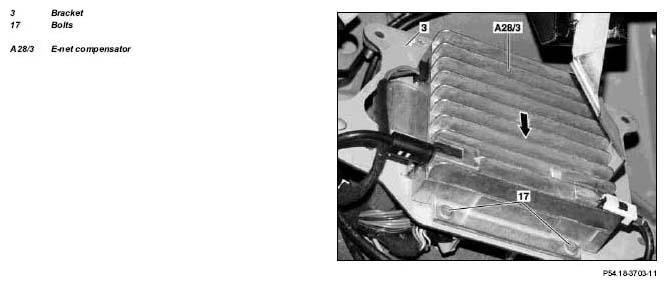

Fig 2: Identifying Bracket, Bolts And E-Net Compensator
G04733804

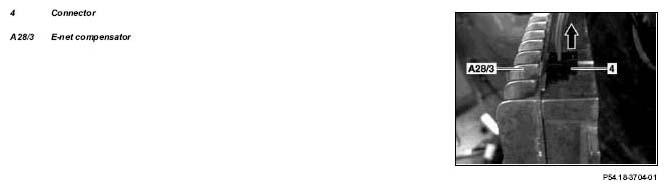

Fig 3: Identifying Connector And E-Net Compensator
G04733805

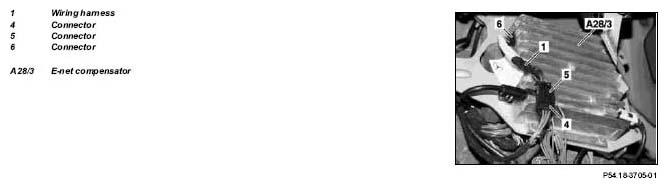

Fig 4: Identifying Wiring Harness, Connector And E-Net Compensator
G04733806

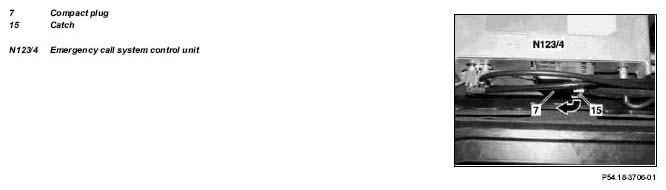

Fig 5: Identifying Compact Plug, Connector, Catches And Emergency Call System Control Unit
G04733807

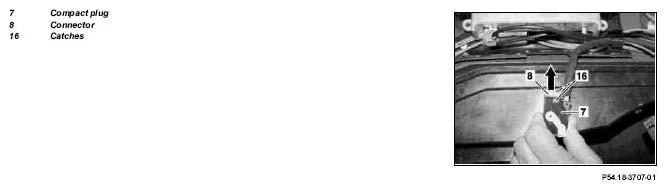

Fig 6: Identifying Compact Plug, Connector And Catches
G04733808

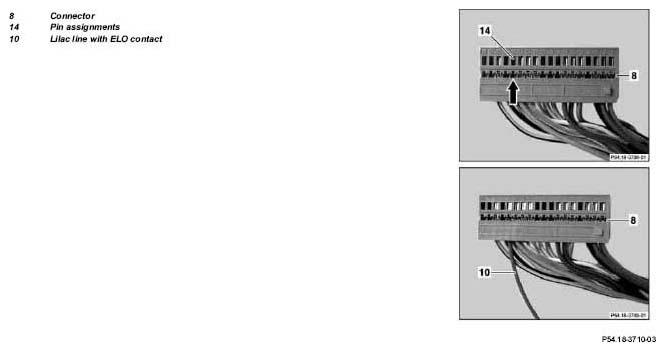

Fig 7: Identifying ELO Contact Assembly
G04733809

Shown: wiring harness routing during ELO contact assembly

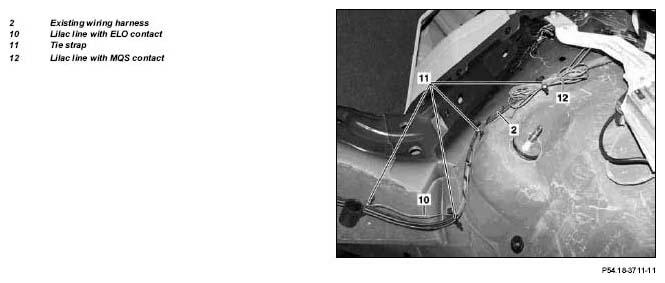

Fig 8: Identifying Wiring Harness Routing During ELO Contact Assembly
G04733810
REMOVING Remove
DANGER Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
NOTES Notes on battery All models AH54.10-P-0001-01A
1 Disconnect ground cable of battery Model 203 AR54.10-P-0003P
    Model 209 AR54.10-P-0003Q
2 Remove paneling in luggage compartment IMPORTANT Only remove front trim.
    Model 203.0 AR68.30-P-4600P
    Model 203.7/209.3 AR68.30-P-4600PB
    Model 203.2 AR68.30-P-4780PA
3 Remove side trim in trunk IMPORTANT Remove only the right side.
    Model 203.0 AR68.30-P-4600P
    Model 203.7/209.3 AR68.30-P-4600PB
    Model 203.2 AR68.30-P-4780PA
4 Unscrew screws (17) on E-net compensator (A28/3)
5 Move out E-net compensator (A28/3) at bracket (3) from top to bottom (arrow)
6 Unclip connector (4) on E-net compensator (A28/3) (arrow)
INSTALLING Install
7 Connect connector (4) with connector (5) to wiring harness (1)
8 Connect connector (6) from wiring harness (1) to E-net compensator (A28/3)
9 Move in E-net compensator (A28/3) to bracket (3) from the bottom upwards
10 Fit bolts (17) to E-net compensator (A28/3)
11 Tighten bolts (17) on E-net compensator (A28/3)
12 Unlock lock (15) on compact plug (7) in direction of arrow
13 Detach compact plug (7) from emergency call system control unit (N123/4)
14 Loosen locks (16) on connector (8)
15 Detach connector (8) from compact plug (7) in direction of arrow IMPORTANT Different connectors (8) are fitted depending on the vehicle model or equipment.
IMPORTANT The color of the connector (8) should be observed in order to then install the correct pin assignment (14).
With a blue connector (8) the lilac line with ELO contact (10) from the wiring harness (1) is used
With a black connector (8) the lilac line with MQS [micro quadlock system] contact (12) from the wiring harness (1)is used.
16.1 Clip lilac line with ELO contact (10) of wiring harness (1) into pin assignment (14) of connector (8) (arrow) IMPORTANT The ELO contact and MQS contact are identified by an information note on the respective lines.
16.2 Clip lilac line with MQS contact (12) of the wiring harness (1) into pin assignment (14) of connector (8) IMPORTANT The ELO contact and MQS-contact are identified by an information note on the respective lines.
17 Clip connector (8) into the compact plug (7)
18 Clip compact plug (7) into emergency call system control unit (N123/4)
19 Lock the lock (15) on the compact plug (7)
20.1 Fasten lilac line with ELO contact (10) with cable ties (11) to existing wiring harness (2) IMPORTANT If lilac line with ELO contact (10) was used.
20.2 Fasten lilac line with [MQS] micro quadlock system contact (12) with cable lies (11) to existing wiring harness (2) IMPORTANT If lilac line with ELO contact (12) was used.
21.1 Bind together lilac line with ELO-contact (10) and fasten with cable ties (11) to existing wiring harness (2) IMPORTANT If lilac line with ELO contact (12) was used.
21.2 Bind together lilac line with MQS-contact (12) and fasten with cable ties (11) to existing wiring harness (2) IMPORTANT If lilac line with ELO contact (10) was used.
22 Install side paneling in luggage compartment IMPORTANT Only install right side.
    Model 203.0 AR68.30-P-4600P
    Model 203.7/209.3 AR68.30-P-4600PB
    Model 203.2 AR68.30-P-4780PA
23 Install trim panel in luggage compartment IMPORTANT Only install front trim.
    Model 203.0 AR68.30-P-4600P
    Model 203.7/209.3 AR68.30-P-4600PB
    Model 203.2 AR68.30-P-4780PA
24 Connect ground cable to battery Model 203 AR54.10-P-0003P
    Model 209 AR54.10-P-0003Q
