Disconnect/connect battery's ground cable - AR54.10-P-0003P

MODEL 203

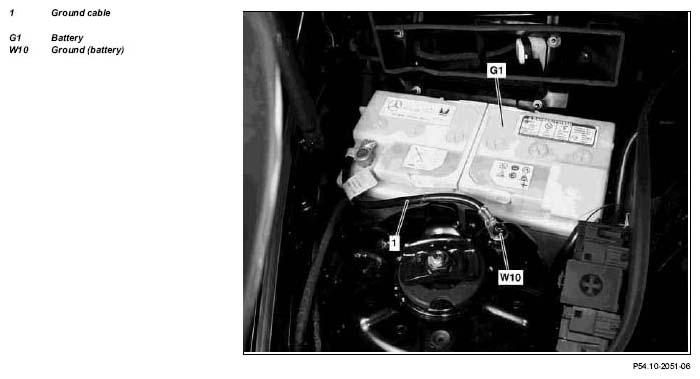

Fig 1: Identifying Battery Ground Cable (Model 203)

G04715681

MODIFICATION NOTES

6.6.06

Quiescent current retention unit discontinued

Step 2

	Remove/install
	Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged leadacid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
1	Remove dust filter housing
2.1	Deactivate backup battery	Only for vehicles with code (349) E-Call emergency call system or with code (494) USA version
3	Disconnect ground cable (1) on battery (G1)
4	Install in the reverse order
5.1	Perform basic programming		AR00.19-P-0200P
6	Read out fault memory and erase	Stored faults which may result from wires being disconnected or from simulation during assembly or testing have to be processed and erased in the fault memories after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
