Disconnect cables at control module, fuse and relay box - AR54.18-P-1261-01PA

Fig 1: Identifying Release Tool For SPT/JPT Contacts (210 589 02 33 00)

G04733828

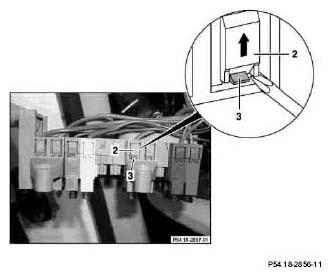

Release contact receptacles (1) of interior fuse box (F34)

Unlock catch (2) using a screwdriver.
Unlock carefully in order to avoid damage.

The catch (2) must be pressed over the locking lug (3) in order to unlock correctly.

Fig 2: Releasing Contact Receptacles Of Interior Fuse Box

Remove contact receptacles (1) from interior fuse box (F34)

Insert release tool from the fuse side through the openings at the contact chamber of the interior fuse box (F34) (direction of arrow).
The spring catches of the contact receptacle (1) are pressed together

when this is done and the contact receptacle (1) released.

Fig 3: Removing Contact Receptacles From Interior Fuse Box
Remove the female contact (1) in the direction of arrow from the interior fuse box (F34) by carefully pulling on the corresponding cable.
Installation:

Pay attention to installation position of cables (mark!).

Ensure that the contact receptacle (1) is properly locked in place in the interior fuse box (F34) and check by pulling slightly on the appropriate cable.
