Central gateway control unit (ZGW), remove and install - AR54.21-P-0817P
MODEL 203 as of 24.4.04
MODIFICATION NOTES
| 24.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | |||
| 1.1 | Transfer basic data from central gateway control unit (N93) into STAR DIAGNOSIS | When installing new central gateway control unit (N93). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Remove cover below left of instrument panel | AR68.10-P-1500P | |

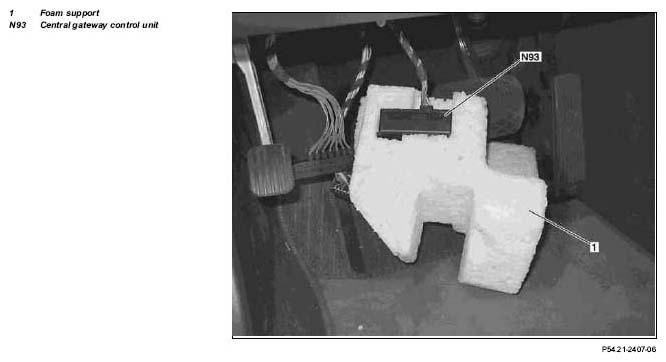

| 3 | Remove foam support (1) for central gateway control unit (N93) | ||
| 4 | Take central gateway control unit (N93) out of foam support (1) | ||
| 5 | Separate coupling from central gateway control unit (N93) | ||
| 6 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
