Turn rack-and-pinion steering to center position, mount steering coupling - AR46.20-P-0600-01P

  1. Turn rack-and-pinion steering to center position.

    IMPORTANT Turn so that the marking on cap is in alignment with the marking on the control valve housing (arrows).

  2. Mount steering coupling.

    Shown on model 203

    Fig 1: Locating Marking On Control Valve Housing (Shown On Model 203)
    G04737151

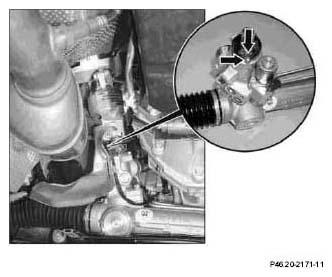

    Shown on model 220 with 4MATIC

    Fig 2: Locating Marking On Control Valve Housing (Shown On Model 220 With 4MATIC)
    G04737152

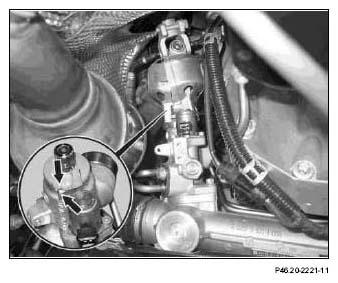

    Shown on model 211 with 4MATIC

    Fig 3: Locating Marking On Control Valve Housing (Shown On Model 211 With 4MATIC)
    G04737153
