Remove/install front seat - AR91.10-P-1000P

MODEL 203

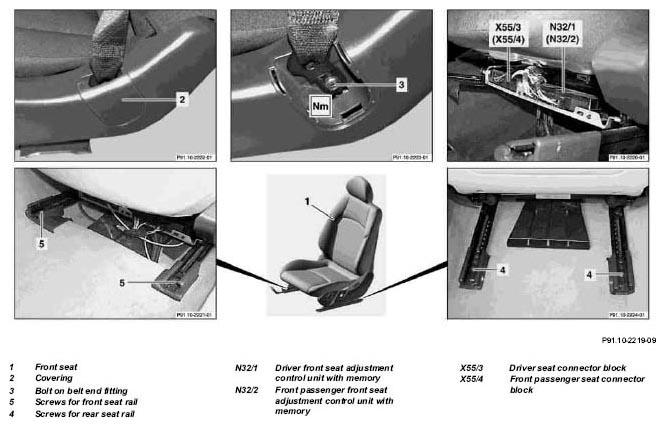

Fig 1: Identifying Front Seat Remove/Install Components - Shown On Model 203 Up To 31.5.04

G04738216

Shown on model 203 up to 31.5.04

	Remove/install
1	Move head restraint down
2	Move steering wheel in	Only driver side.
3	Adjust front seat (1) to front
4	Unclip cover (2) from belt end fitting	Except model 203.7
5	Unscrew bolts from belt end fitting (3).	Except model 203.7
		Screw on belt end fitting	*BA91.40-P-1001-01A
6	Disconnect connector	Except model 203.7	AR68.30-P-4700P
7	Unscrew bolts for rear seat rails (4)	Screw at seat rail	*BA91.10-P-1001-01A
8	Position front seat (1) to rear
9	Unscrew bolts for front seat rails (5)	Screw at seat rail	*BA91.10-P-1001-01A
10	Disconnect control unit connectors	Driver side front seat adjustment control unit with memory (N32/1), passenger seat adjustment control unit with memory (N32/2).
11	Unplug connectors from connector block	At driver seat connector block (X55/3), passenger seat connector block (X55/4).
12	Remove pneumatic connection	For vehicles with code 404 Left multicontour seat.
13	Remove front seat (1)	Installation: Ensure the locking bolts are seated correctly.
14	Install in the reverse order
15	Carry out function check

TORQUE SPECIFICATION

FRONT SEATS

Number	Designation		Model 203
BA91.10-P-1001-01A	Bolt to seat runner	Nm	50

TORQUE SPECIFICATION

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 203
BA91.40-P-1001-01A	Screw on belt end fitting	Nm	30
