Control and operating unit for automatic air conditioning, location/task - GF83.40-P-2180PP

MODEL 203.0 /2 /7 up to 31.5.01 with CODE (580) Air conditioning (or Tempmatic for USA)

MODEL 203.0 /2 /7 as of 1.6.01 up to 23.4.04 with CODE (580) Automatic air conditioning

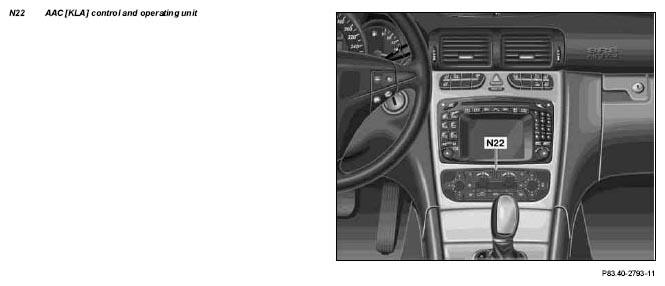

Fig 1: Identifying AAC (KLA) Control And Operating Unit - Model 203.0 /2 /7 Up To 31.5.01 And As Of 1.6.01 Up To 23.4.04 With Code (580)
G04737981
  Automatic air conditioning control and operating unit, location The AAC control and operating module (N22) is located in the center console.
  Automatic air conditioning control and operating unit, task   GF83.40-P-2180-01PP
