Control and operating unit comfort automatic air conditioning location/task - GF83.40-P-2181PP

MODELS 203.0 /2 /7 up to 31.5.01 with CODE (581) Automatic air conditioning

MODELS 203.0 /2 /7 as of 1.6.01 up to 23.4.04 with CODE (581) Comfort automatic air conditioning

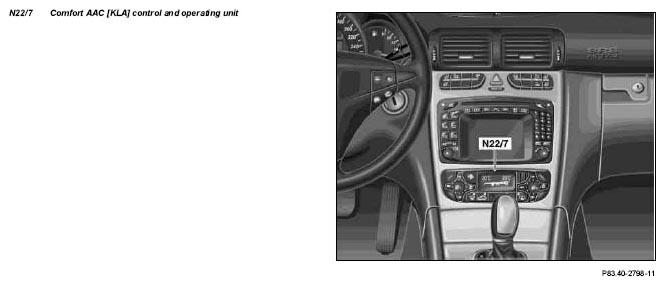

Fig 1: Identifying Comfort Acc (KLA) Control And Operating Unit - Models 203.0 /2 /7 Up To 31.5.01 And As Of 1.6.01 Up To 23.4.04 With Code (581)
G04737985
  Control and operating unit comfort automatic air conditioning, location The comfort AAC control and operating unit (N22/7) is located in the center console.
  Control and operating unit comfort automatic air conditioning, task   GF83.40-P-2181-01PP
