Running diagram of poly V-belt - AR13.22-P-3902-02QP

Shown on engine 271.940 with refrigerant compressor

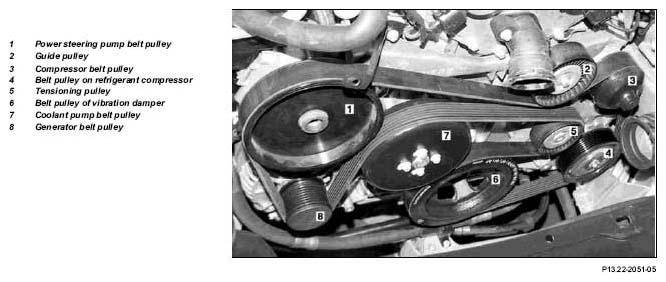

Fig 1: Running Diagram Of Poly V-Belt (Shown On Engine 271.940 With Refrigerant Compressor)

G04732162
