Remove, install poly V-belt - AR13.22-P-1202PV

ENGINE 112.912 in MODEL 203.061 /261, 209.361 /461

ENGINE 112.946 in MODEL 203.064 /264 /764

ENGINE 113.968 in MODEL 209.375 /475

ENGINE 112.913 in MODEL 211.061 /261

ENGINE 112.949 in MODEL 211.065 /265

ENGINE 113.967 in MODEL 211.070 /270

ENGINE 113.987 in MODEL 209.376 /476

ENGINE 112.955 in MODEL 209.365 /465

ENGINE 112.916 in MODEL 203.081 /281

ENGINE 112.953 in MODEL 203.084 /284

ENGINE 112.917 in MODEL 211.080 /280

ENGINE 112.954 in MODEL 211.082 /282

ENGINE 113.969 in MODEL 211.083 /283

ENGINE 113.988 in MODEL 203.076 /276

ENGINE 113.989 in MODEL 171.473

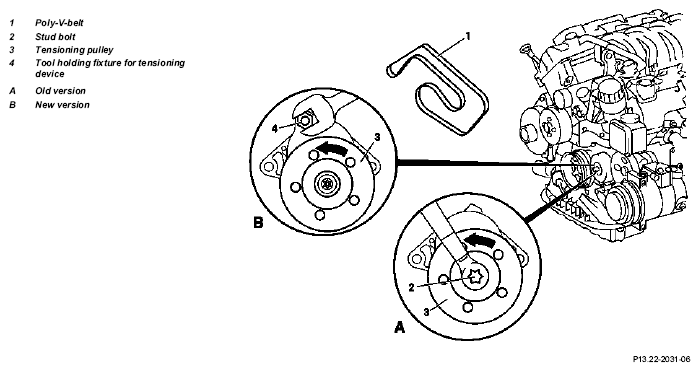

Shown on engine 112 in model 203

	Remove
1	Loosen poly-V-belt (1) and remove	Old version (A):  Swivel stud bolt (2) at tensioning pulley (3) in an counter-clockwise direction. New version (B):  Swivel tool mount for tensioning device (4) at tensioning pulley (3) in an counter-clockwise direction. Lock tensioning pulley (3) with pin or drift (diameter 5 mm).
	Check
2	Inspect belt pulley sections and tensioning device for damage and dirt
3	Check poly-V-belt (1)
	Check poly-V-belt in visible area for wear	All except model 171.473	AP13.22-P-1352Z
		Model 171.473	AP13.22-P-1352VT
	Install
4	Fit on poly V-belt (1), tension	Do not use belt wax or any similar products. Start in numerical order of the relevant running diagram at tensioning pulley (3), see: ↓
		Layout diagram of poly-V-belt	AR13.22-P-3902-02B
