Check oil level - AR18.00-P-3035-01PW

FLUID SPECIFICATION OIL LEVEL CHECK

Number Designation Engine 112.916/953 in model 203 with 4-MATIC
BF18.00-P-1001-03K Oil level Maximum mm 124
Minimum mm 104
BF18.00-P-1002-03K Oil dipstick indication from 89 mm to 121 mm (oil level too low) 89 mm Replenished oil quantity in liters +2.5
91 mm Replenished oil quantity in liters +2.4
93 mm Replenished oil quantity in liters +2.3
95 mm Replenished oil quantity in liters +2.2
97 mm Replenished oil quantity in liters +2.0
99 mm Replenished oil quantity in liters +1.8
101 mm Replenished oil quantity in liters +1.7
103 mm Replenished oil quantity in liters +1.6
105 mm Replenished oil quantity in liters +1.4
107 mm Replenished oil quantity in liters +1.3
109 mm Replenished oil quantity in liters +1.2
111 mm Replenished oil quantity in liters +1.0
113 mm Replenished oil quantity in liters +0.8
115 mm Replenished oil quantity in liters +0.7
117 mm Replenished oil quantity in liters +0.6
119 mm Replenished oil quantity in liters +0.4
121 mm Replenished oil quantity in liters +0.2
BF18.00-P-1003-03K Oil dipstick indication from 123 mm to 125 mm (oil level correct) 123 mm Oil quantity in liters 0.0
124 mm Oil quantity in liters 0.0
125 mm Oil quantity in liters 0.0
BF18.00-P-1004-03K Oil dipstick indication from 127 mm to 135 mm (oil level too high) 127 mm Extracted oil quantity in liters -0.2
129 mm Extracted oil quantity in liters -0.3
131 mm Extracted oil quantity in liters -0.4
133 mm Extracted oil quantity in liters -0.7
135 mm Extracted oil quantity in liters -0.8
Fig 1: Identifying Measuring Rod (120 589 07 21 00)
G04732292
  1. Position vehicle with warm engine on an even surface.
  2. Switch off engine and maintain a waiting time of approx. 5 minutes.
  3. Unplug plug (1) of oil dipstick guide tube (2).
  4. SPECIAL TOOL Lead the dipstick (3) into the oil dipstick guide tube (2) until its tip is in the engine oil pan.

    IMPORTANT Leave there for at least a 3 seconds dwell time.

    IMPORTANT The collar of the dipstick grip end does not sit on the oil dipstick guide tube (2).

    IMPORTANT Do not bend the dipstick SPECIAL TOOL (3). The dipstick (3) SPECIAL TOOL must be pushed and guided according to the form of the oil dipstick guide tube (2).

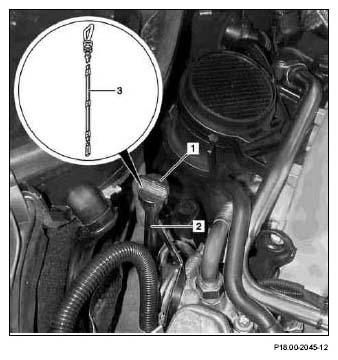

    Shown on model 203 with engine 112

    Fig 2: Locating Dipstick - Shown On Model 203 With Engine 112
    G04732293
  5. Read off engine oil level on dipstick SPECIAL TOOL (3).
  6. Establish the oil replenishment quantity from the oil level table.
  7. Adjust engine oil level correctly, if required.
  8. Place plug (1) onto oil dipstick guide tube (2).
