Check oil level - AR18.00-P-3035-01BA

FLUID SPECIFICATION OIL LEVEL CHECK

Number Designation Engine 112.961 in model 203
BF18.00-P-1001-03BA Oil level Maximum mm 172
Minimum mm 152
BF18.00-P-1002-03BA Dipstick indication from 137 mm to 169 mm (oil level too low) 137 mm Replenished oil quantity in liters +2.3
139 mm Replenished oil quantity in liters +2.2
141 mm Replenished oil quantity in liters +2.1
143 mm Replenished oil quantity in liters +2.1
145 mm Replenished oil quantity in liters +2.1
147 mm Replenished oil quantity in liters +2.1
149 mm Replenished oil quantity in liters +1.7
151 mm Replenished oil quantity in liters +1.6
153 mm Replenished oil quantity in liters +1,4
155 mm Replenished oil quantity in liters +1.3
157 mm Replenished oil quantity in liters +1.1
159 mm Replenished oil quantity in liters +0.9
161 mm Replenished oil quantity in liters +0.8
163 mm Replenished oil quantity in liters +0.7
165 mm Replenished oil quantity in liters +0.5
167 mm Replenished oil quantity in liters +0.4
169 mm Replenished oil quantity in liters +0.2
BF18.00-P-1003-03BA Dipstick indication from 171 mm to 173 mm (oil level correct) 171 mm Oil quantity in liters 0.0
172 mm Oil quantity in liters 0.0
173 mm Oil quantity in liters 0.0
BF18.00-P-1004-03BA Dipstick indication from 175 mm to 179 mm (oil level too high) 175 mm Extracted oil quantity in liters -0.2
177 mm Extracted oil quantity in liters -0.3
179 mm Extracted oil quantity in liters -0.4
Fig 1: Identifying Measuring Rod (120 589 07 21 00)
G04732285
  1. Position vehicle with warm engine on an even surface.
  2. Switch off engine and maintain a waiting time of approx. 5 minutes.
  3. Unplug plug (1) of oil dipstick guide tube (2).
  4. SPECIAL TOOL Lead dipstick (3) into the dipstick guide tube (2) until its tip lies in the engine oil pan.

    IMPORTANT Leave there for at least 3 seconds dwell time.

    IMPORTANT The collar of the dipstick grip end sits close at the oil dipstick guide tube (2).

    IMPORTANT Do not kink SPECIAL TOOL the dipstick (3). The SPECIAL TOOL dipstick (3) must be pressed in and guided according to the form of the dipstick guide tube (2).

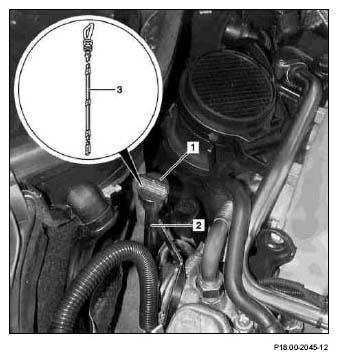

    Shown on model 203 with engine 112

    Fig 2: Locating Dipstick - Shown On Model 203 With Engine 112
    G04732286
  5. Read off engine oil level at SPECIAL TOOL dipstick (3).
  6. Establish oil replenishment amount from the oil level table.
  7. Adjust engine oil level correctly, if required.
  8. Place plug (1) onto oil dipstick guide tube (2).
