Remove, install air pump - AR14.30-P-7251PR

ENGINE 111.951 in MODEL 203.035 /235 /735

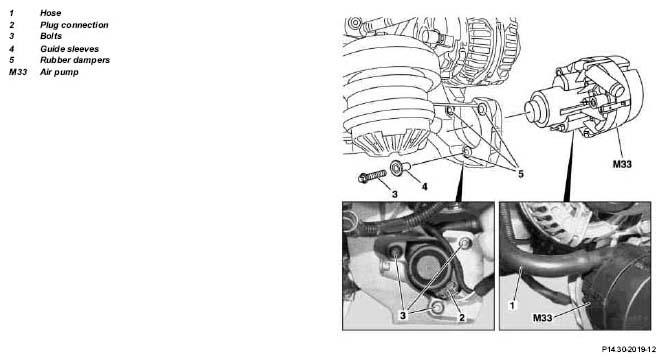

Fig 1: Identifying Air Pump Remove/Install Components - Engine 111.951 In Model 203.035 /235 /735

	Removing, installing
1	Remove air cleaner housing		AR09.10-P-1150PR
2	Remove lower engine compartment lining		AR61.20-P-1105P
3	Detach hose (1) at air pump (M33)
4	Separate plug connection (2) of air pump (M33)
5	Unscrew screws (3)	Installation:  Ensure that the guide sleeves (4) are correctly installed.
			*BA14.30-P-1004-01A
6	Remove air pump (M33)	Installation:  Inspect rubber dampers (5) for damage, replace if necessary.
7	Install in the reverse order

AIR PUMP

Number	Designation		Engine 111.951
BA14.30-P-1004-01A	Bolt of air pump to bracket	NM	8
