Interlinkage, general - GF54.21-P-9611C

MODEL 202 as of 1.6.97, 210.081 /281, 210 (except 210.081 /281) as of 1.3.97

Block diagram

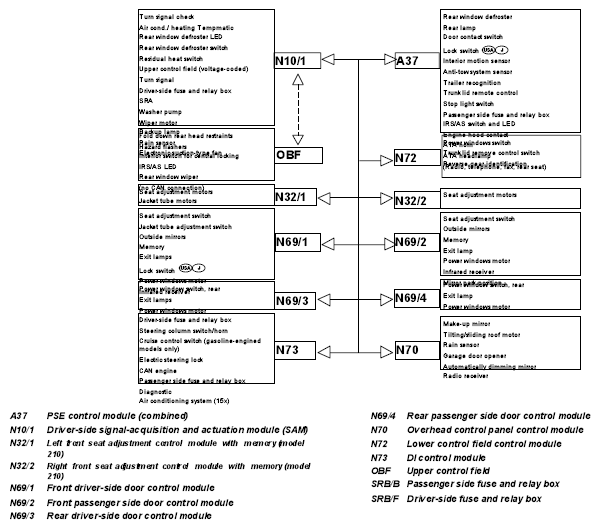

Fig 1: Interlinkage Block Diagram - Model 202 As Of 1.6.97, 210.081 /281, 210 (Except 210.081 /281) As Of 1.3.97

Some of the conventional wiring is no longer required due to the passenger compartment networking. Switches and control modules are connected by CAN data lines. The DI control module forms the gateway between the passenger compartment bus and engine compartment bus.

Components

The following control modules are networked at the passenger compartment bus:

• Overhead control panel
• DI control module
• PSE control module (combined)
• Driver-side signal-acquisition and actuation module (SAM)
• Left front seat adjustment control module with memory (model 210)
• Right front seat adjustment control module with memory (model 210)
• Front driver-side door control module
• Front passenger side door control module
• Rear driver-side door control module
• Rear passenger side door control module
• Lower control field control module

Networking systems

The following systems are networked at the passenger compartment bus and described in the function groups listed below.

	Electric steering column adjustment, general	Model 210	GF46.15-P-9611-01C
	Rear window defroster, general	Models 202, 210	GF67.29-P-9611-01C
	Electrically operated windows, general	Models 202, 210	GF72.29-P-9611-01C
	Electric tilting/sliding roof, general	Models 202, 210	GF77.20-P-9611-01C
	Trunk lid remote control, general	Models 202, 210	GF80.00-P-9611-01C
	Radio and infrared remote control for central locking, general	Models 202, 210	GF80.30-P-9611C
	Interior lighting, general	Models 202, 210	GF82.20-P-9611-01C
	Wiper system, general	Models 202, 210	GF82.30-P-9611-01C
	Convenience feature, general	Models 202, 210	GF80.45-P-9611-01C
	Anti-theft alarm system (ATA), general	Models 202, 210	GF80.50-P-9611C
	Drive authorization system level 3, general	Models 202, 210	GF80.57-P-9611C
	Electrically adjustable outside mirror, general	Models 202, 210	GF88.79-P-9611C
	Rear head restraint lowering, general	Models 202, 210	GF91.16-P-9611-01C
	Electric seat adjustment with memory, general	Model 210	GF91.29-P-9611-01C
