Display transmission information, function - GF54.30-P-3023PO

MODEL 203 with TRANSMISSION 722.9 except CODE (428) Steering wheel shift buttons A1p12 Gear indicator

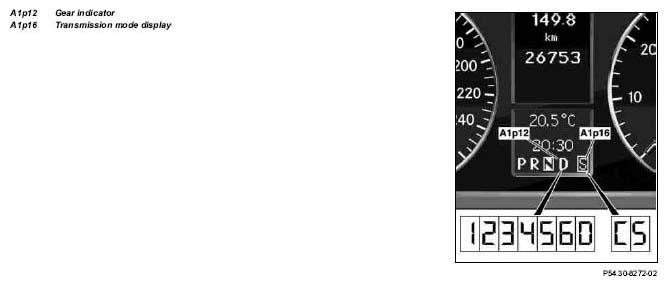

Fig 1: Identifying Gear Indicator And Transmission Mode Display - Model 203 With Transmission 722.9 Except Code (428) Steering Wheel Shift Buttons A1P12 Gear Indicator

Gear indicator (A1p12) in instrument cluster (A1):

The gear indicator (A1p12) shows the driver the currently selected shift range 1, 2, 3, 4, 5, 6 or the selector lever position D, R, N or P.

Transmission mode display (A1p16) in instrument cluster (A1)

In the transmission mode display (A1p16) the driver is shown the transmission mode selected at the transmission mode switch (S16/5), sport program (S) or comfort program (C).
