Preparing bottom section of firewall for installation - AR62.25-P-1100-02P
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-02A | Hole punching pliers, dia. 7 mm |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
- Punch 7 mm dia. holes

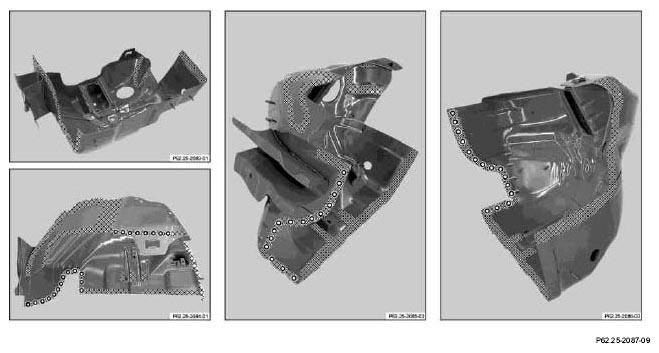

- Sand connection surfaces down to bare metal in the shaded areas.
