Prepare wheelhouse for welding - AR62.20-P-1200-14P
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-02A | Hole punching pliers, dia. 7 mm |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

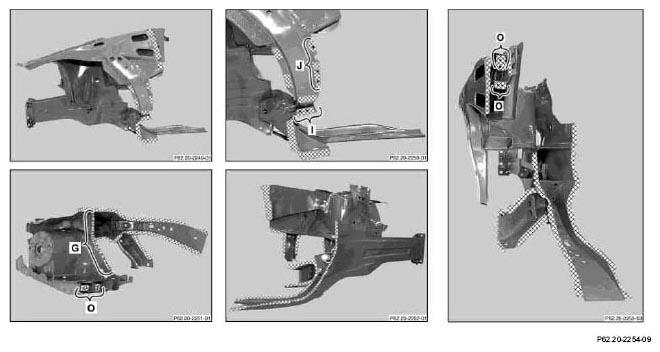

- Punch holes (areas G, I, J and O).
- Sand connection surfaces down to bare metal in the shaded areas.
Sand spot weld flanges down to bare metal on both sides.
- Coat insides of spot weld flanges with zinc dust paint.
