Prepare top front longitudinal member - AR62.20-P-1286-02P
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

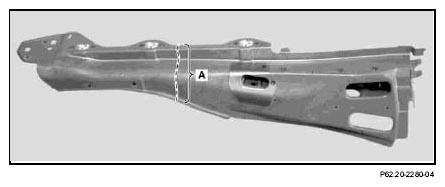

- Mark separation point on new upper front longitudinal member (area A).
- Cut separation point with body saw (area A).
- Sand connection surfaces down to bare metal in the shaded areas.
Sand spot weld flanges down to bare metal on both sides.
- Coat insides of spot weld flanges with zinc dust paint.
